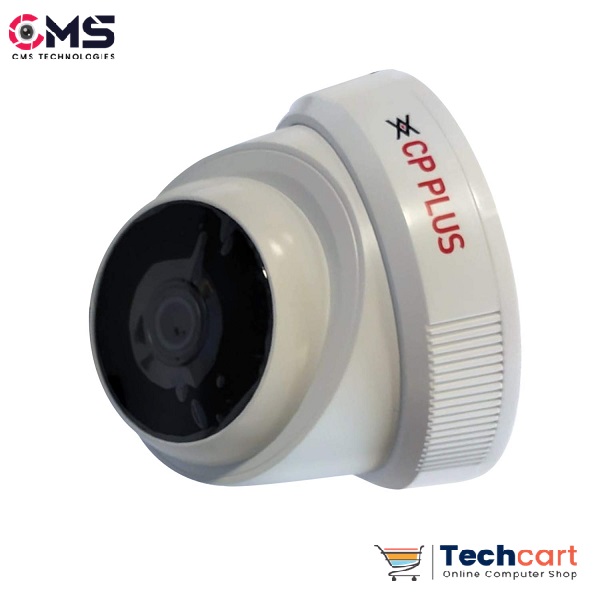

Cam CP Plus Dual Light Dome URC-DC24PL3C-L-0360
Sale!
Cam CP Plus Dual Light Dome URC-DC24PL3C-L-0360
Original price was: 2,999.00. 1,400.00Current price is: 1,400.00.
| Specifications:- | |
| Product Name | Cam CP Plus Dual Light Dome URC-DC24PL3C-L-0360 |
| Image Sensor | 2.4MP PS CMOS Image Sensor |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Shutter Speed | PAL: 1/25~1/10000s NTSC: 1/30~1/10000s |
| Gain Control (AGC) | Auto/Manual |
| White Balance | Auto, Area white balance |
| DORI Distance | 2.8 mm: Detect: 44.7Mtr. , Observe: 17.9Mtr., Recognize: 8.9Mtr., Identify: 4.5Mtr. 3.6 mm: Detect: 50.0Mtr., Observe: 22.0Mtr., Recognize: 11.0 Mtr., Identify: 5.5Mtr. |
| Close Focus Distance | 3.6mm– 0.8Mtr. 2.8mm– 0.5Mtr. |
| IR Distance | IR Range of 30 Mtr. |
| Warm Light | Warm Light Rane of 20 Mtr. |
| IR Control | Auto/Manual |
| Dual LED Numbers | 2 (Warm light), 2 (IR light) |
| Iris Control | Fixed |
| Lens Mount | M12 |
| Max. Aperture | F2.0 |
| Lens Type | Fixed-focal |
| Lens | 3.6mm (2.8mm optional) |
| S/N Ratio | >65 dB |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117° |
| Resolution | 2.4MP(1920×1088); 960H (960 × 576/960 × 480) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto(ICR)/Color/B/W |
| Noise Reduction | 2D NR |
| Mirror Function | Support |
| Privacy Masking | Off/On (8 areas, rectangle) |
| OSD Menu | Multi-language |
| Audio | Built-in Mic |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | Less than 95% RH |
| Storage Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Storage Humidity | Less than 95% RH |
| Power Source | 12V DC ±25% |
| Power Consumption | Max 2 W (12 VDC, LED on) |
| Casing | Plastic |
| Dimension | 85.0 mm × 77.1 mm |
Description of this Item:-
- 2.4MP PS CMOS Image Sensor
- DWDR, Day/Night (ICR), 2D-NR,BLC, HLC
- 3.6mm fixed lens (2.8 mm, 6mm optional)
- IR Range of 30 Mtrs., Warm Light Range of 20 Mtr.
- Control over coaxial cable
- Support Built-in Mic
1 in stock
