Additional information
| Brand Product |
|---|

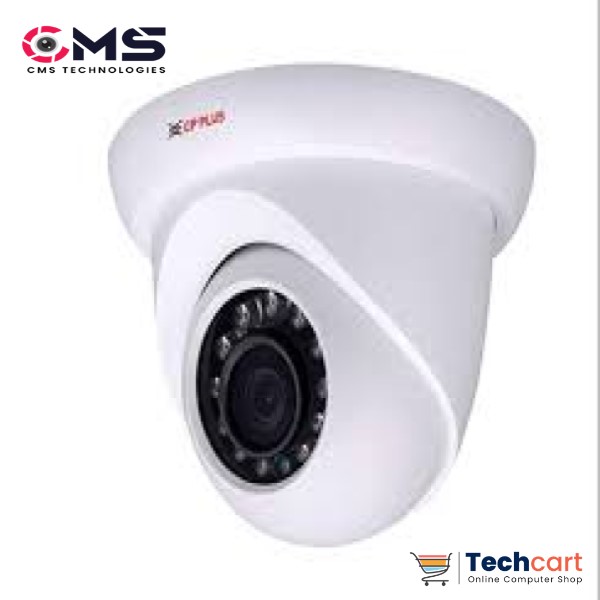

CAM CP PLUS HD IR Audio Dome 30mtr USC-DA24L3C-0360
Sale!
CAM CP PLUS HD IR Audio Dome 30mtr USC-DA24L3C-0360
Original price was: 2,200.00. 2,065.00Current price is: 2,065.00.
| Specifications:- | |
| Image Sensor | 1/2.7″ 2.4MP PS CMOS (0.9407 cm) |
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| Effective Pixels | 2.4MP |
| BodyType | Dome |
| Shutter Speed | PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s |
| White Balance | Auto/Manual |
| AGC Control | Auto/Manual |
| Close Focus Distance | 0.5m (1.64ft)/0.8m (2.95ft) |
| Lens | 3.6mm (2.8mm optional) |
| S/N Ratio | >65dB |
| Max Aperture | F1.9 |
| Back Light Comp. | BLC/ HLC/ DWDR |
| Auto Iris | Fixed-Iris |
| Lens Type | Fixed-focal |
| DORI Distance | 2.8mm: D:38.6m, O: 15.4m, R: 7.7m, I: 3.9m 3.6mm: D: 49.7m, O: 19.9m, R: 9.9m, I: 5m |
| OSD | Multi-language |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio | Built-in Mic |
| ICR | Auto switch by ICR |
| IR | IR Range of 30 Mtr. |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F); <95% (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 3.3W (12V DC, IR on) |
| Weatherproof Standard | IP67 |
| Dimension | Φ97.0mm×85.8mm |
| Casing | Metal upper dome+plastic lower dome+plastic cover |
| Weight | 0.22kg |
CP-USC-DA24L3C-2.4MP IR Dome Camera – 30Mtr.
- 1/2.7″ 2.4MP PSCMOS Image Sensor (0.9407 cm)
- Max 30fps@2.4MP
- DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm fixed lens (2.8mm optional)
- IR Range of 30Mtrs., Built-in Mic, IP67
- OSD Menu, control over coaxial cable, 2D-DNR
- HD, SD and Two other Analog format Output switchable
1 in stock
